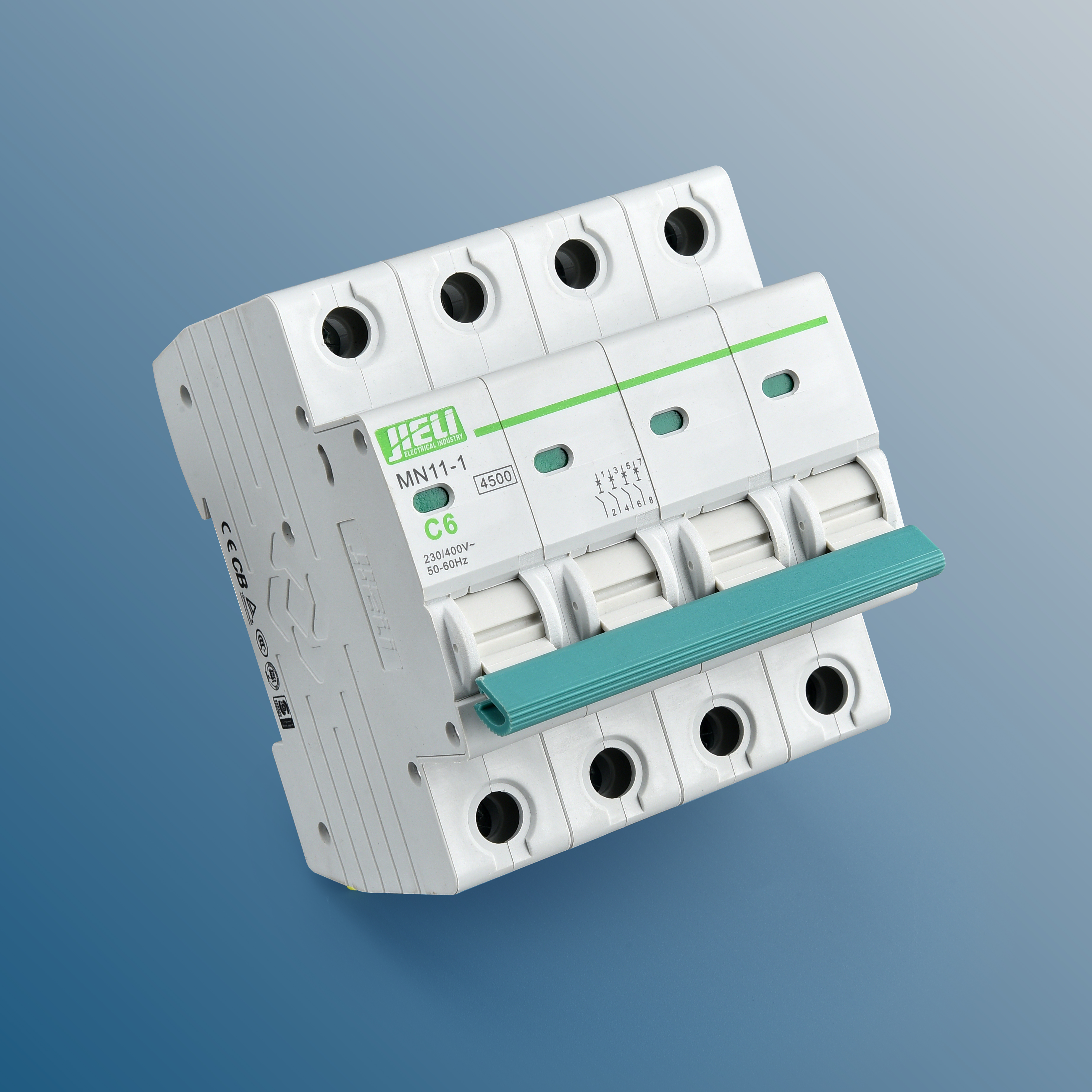

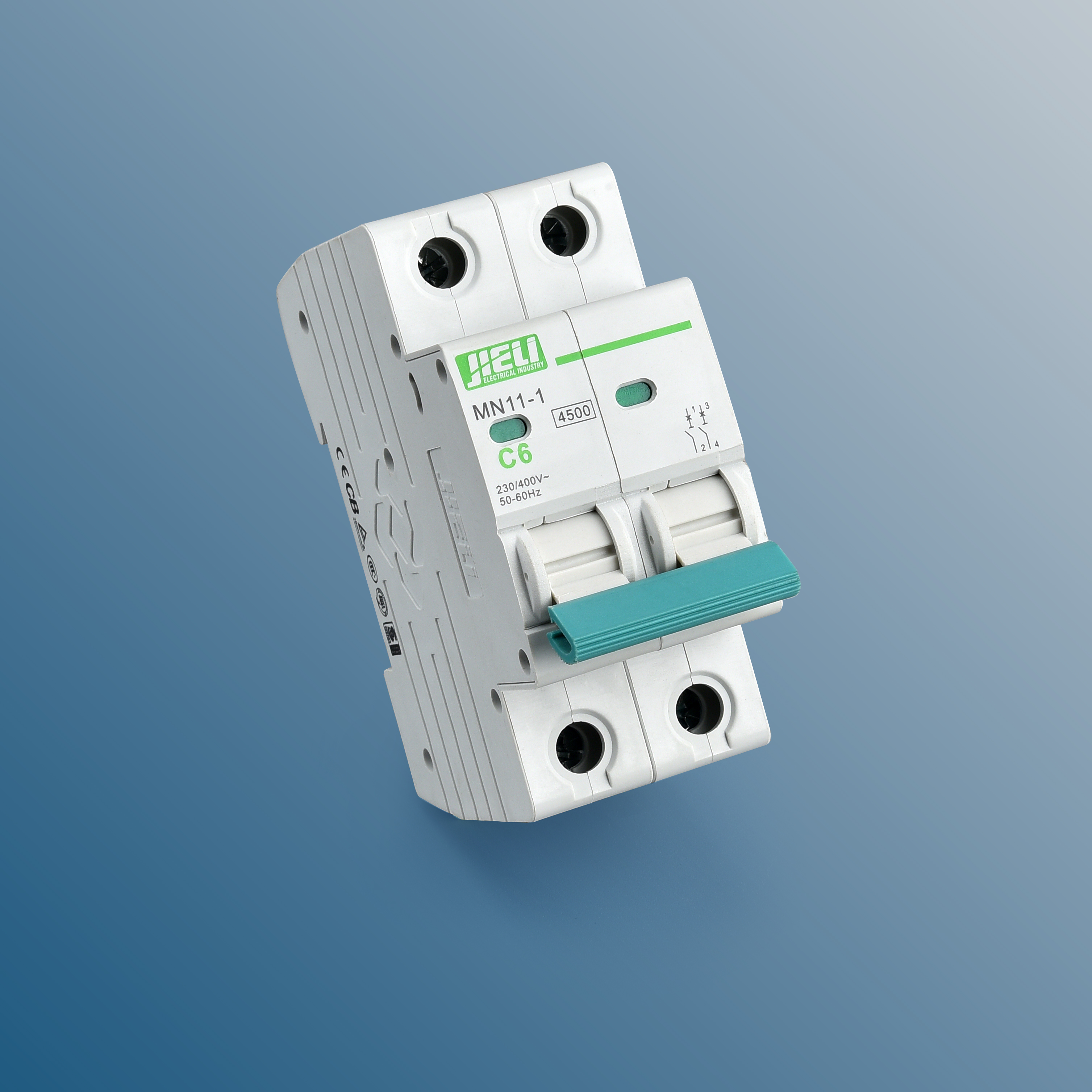

● Application
This product has intellectual property right, breaking capacity up to 6KA, provide perfect matching products, we can apply for local certifications according to local market requirements. provide overload and short circuit protection, It conforms with the standards of IEC60898.
● Product Main Technical
Rated current In | 1A-63A |
Pole number | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
Rated voltage Ue | AC 230/400V |
Rated frequency | 50/60Hz |
Rated breaking capacity | 6 KA |
Running breaking capacity | 6 KA |
Rated shock withstand voltage | 4 KV |
Tripping characteristic | B . C . D |
Mechanical life | 10000 times |
Electrical life | 4000 times |
Protection level | IP20 |
Fiducial temperature | 30℃ |
Ambient temperature | -5℃ to +40℃ |
Storage temperature | -35℃ to +70℃ |
Installation type | Modular structure, Rail mounted |
Terminal wiring capability | 25mm² |
Tightening torque | 2.0N*m 22In-Ibs |
Mounting | 35mm |
● Overall & Installation Dimension(mm)
● Provide MCB spare parts for customers
