Application

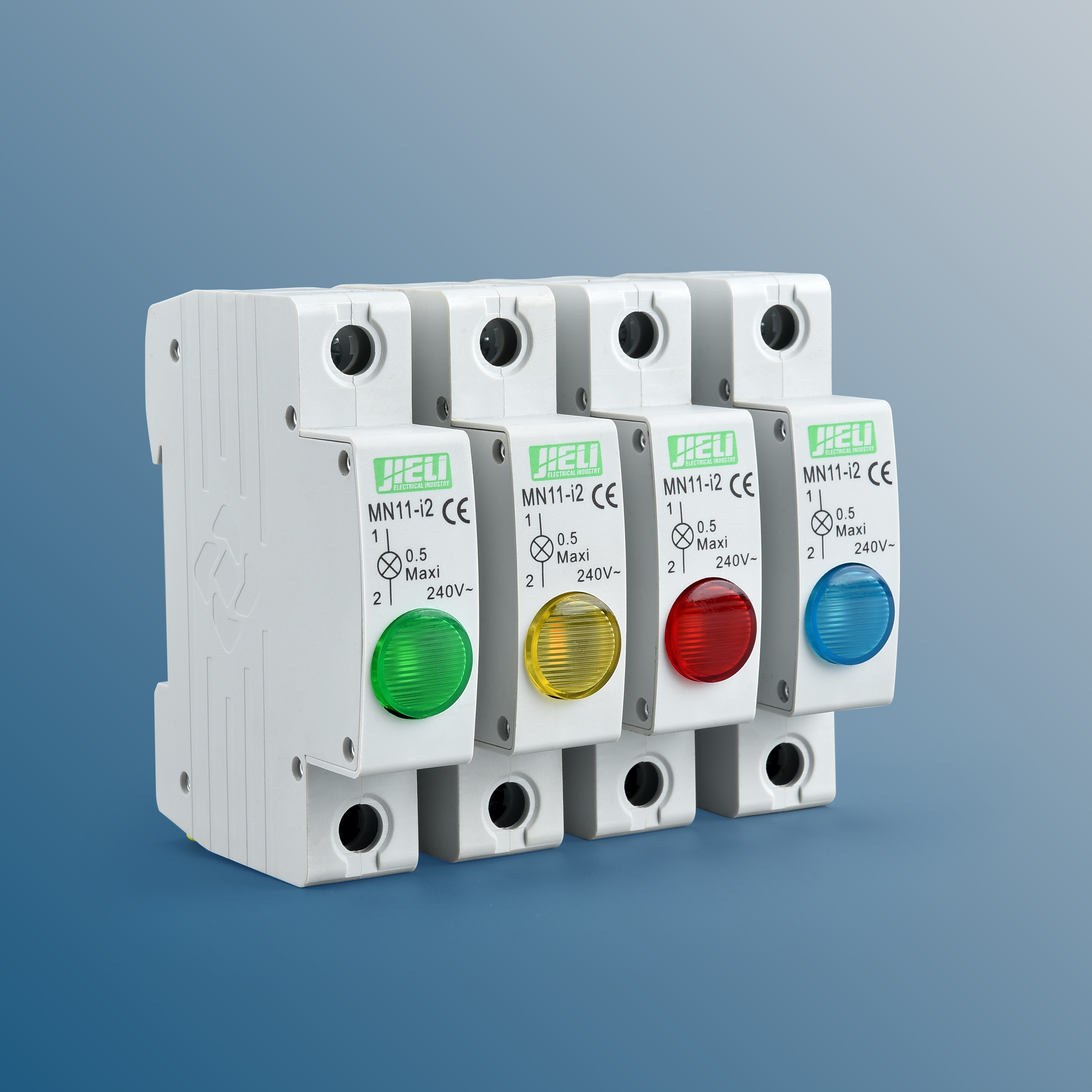

This Indicator Light is applicable to circuit with rated voltage 230v and frequency 50/60Hz for visual indication and signaling. It was with low service duration, minimum power consumption, compact design in modular size and easy installation.
Product Main Technical
Illumination | Neon bulb, LED |
Max. power | 1.2w(Neon bulb), 0.6w(LED) |
Rated voltage | 230V AC |
Light Colour | Red, Green, Yellow |
Rated frequency | 50/60Hz |
Ambient temperature | -25°C ~ +40°C |
Service duration | Neon bulb 15000hours, LED 30000 hours |
Protection level | IP20 |
Installation style | DIN rail 35mm |
Terminal connection type | Cable/Pin type |
Biggest wiring ability | 10mm² |
Rated lamp | 1 lamp, 2 lamps, 3 lamps |
Application
This Indicator Light is applicable to circuit with rated voltage 230v and frequency 50/60Hz for visual indication and signaling. It was with low service duration, minimum power consumption, compact design in modular size and easy installation.
Product Main Technical
Illumination | Neon bulb, LED |
Max. power | 1.2w(Neon bulb), 0.6w(LED) |
Rated voltage | 230V AC |
Light Colour | Red, Green, Yellow |
Rated frequency | 50/60Hz |
Ambient temperature | -25°C ~ +40°C |
Service duration | Neon bulb 15000hours, LED 30000 hours |
Protection level | IP20 |
Installation style | DIN rail 35mm |
Terminal connection type | Cable/Pin type |
Biggest wiring ability | 10mm² |
Rated lamp | 1 lamp, 2 lamps, 3 lamps |
